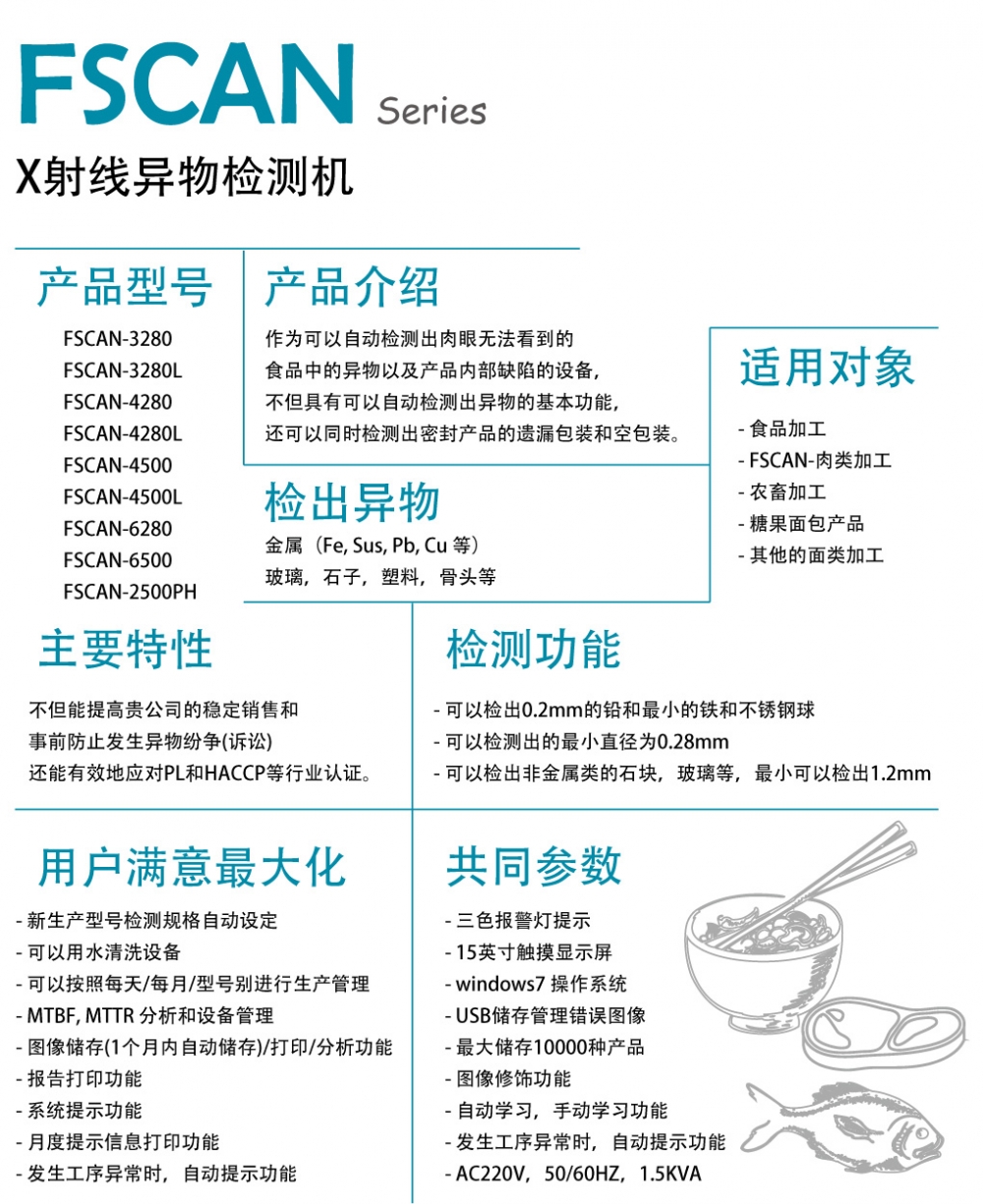

X射線檢測機特性參數
 |
 | 世界最強的檢出能力 | | | | | |  |
|
|
| 提供多樣的軟件和解決渠道 | | | | | |  |
|
|
| PL - HACCP 對應方案 | | | |  |
|
|
| Specification | | | | | | | 型號 | FSCAN-
2080 | FSCAN-
3280/3280C | FSCAN-
4280/4500/4500H | FSCAN-
6280/6500/6500H | | Minimum detection capability | Lead(Pb)0.2mm, Fe sphere ?0.28 | | SUS wire ?0.28 x 1mm | | X-ray Output | Max.80kV | Max.80kV | Max.80kV/120kV | Max.80kV/120kV | | 100W | 100W | 100W/480W | 100W/480W | | Conveyor | Detection speed | Max. 60m/分 | Max. 60m/分 | Max. 60, 43m/分 | Max. 43m/分 | | Min. 10m/分 | Min. 10m/分 | Min. 10m/分 | Min. 10m/分 | | Width | 195mm | 270mm | 420mm | 620mm | | Maximum passage height | 120mm | 145mm | 175mm/190mm/250mm | 300mm/405mm | | Maximum weight | 10kg(5kg以下 Belt速度：每分 40M/min以上) (可選20kg) | | Height of belt surface | 750 ± 50mm | Control
computer
Monitor | Core 2 Duo E2200 2.2G (RACK TYPE) | Operation
System | Window XP Professional | | Management of images of defectiveness | 存儲于USB port，可以輸送(應對HACCP) | | Masking function | 產品形狀，圖像亮度掩蔽功能(共16種)/最大10,000個 | | Model registration function | 可以進行產品登錄(應對HACCP) | | Product Management | Daily/Month/Model Product Capacity Analysis | | Equipment Management | MTBF, MTTR, Error Log, Error Analysis | | Teaching | Auto Teaching, Manual teaching | | Image Management | Image Save/ Print/ Analysis(Defect Size measurement) (應對HACCP) | | Washing | In accordance with IP66 Standard base | | Amount of x-ray exposure | 最大輸出量 < 10uSv/Hour | | Operational environment | 0°C ~ 35°C | | Power supply/product weight | 220V 單相, Max.200kg | 220V 單相, Max.320kg | 220V 單相, Max.480kg | 220V 單相, Max.580kg | | External dimensions | 1420*767*685 mm (H*W*D) | 1520*870*735 mm (H*W*D) | 1700x1400x775mm (HxWxD) | 1800x1900x1100mm (HxWxD) | | Power consumption | 1.2kw | 1.2kw | 1.2kw | 1.5kw |
| | | | | | 注意 1) 實際檢測感知度根據產品的物理屬性（內容物，模樣）或者是環境條件會有所變化。 |
|
